DJI Transmission System

DJI Transmission System

R 49,999.00
R 49,999.00
Sale Sold out
Taxes included.

Vision Beyond Boundaries

A New Era

Transmission Performance




Long-Distance HD Live Feed

DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 6km/20,000ft [1] on-ground transmission distance. It also supports transmission at 1080p/60fps with a max bitrate of 40Mbps as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets with an excellent remote visual and audio monitoring experience.

End-to-End Ultra-Low Latency

The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like ALEXA Mini LF.

Seamless Auto Frequency Hopping

O3 Pro adds DFS bands* on top of the traditional 2.4 GHz and 5.8 GHz frequency bands, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels. In addition, DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.

With a built-in frequency sweeper, users can even manually select the optimal channel to avoid interference between devices.

By mounting high-gain antennas, [2] transmission capability is further boosted.

One Transmitter with Multiple Receivers

The High-Bright Remote Monitor supports one transmitter with multiple receivers for video and audio feeds in two transmission modes. In Control mode, DJI Transmission delivers optimal transmission performance. Monitoring can be done from two receivers at the same time, while Ronin 2, RS 3 Pro, and camera focus can all be controlled remotely.

Meanwhile, for crews operating with multiple members and teams, such as lighting, art department, and props, Broadcast mode can also be enabled to allow an unlimited number of receivers (transmission performance differs with Broadcast mode enabled). This brings shooting efficiency and awareness to an entirely new level.

Diverse Settings


Multiple Transmitters, Multiple Receivers
One Transmitter, Two Receivers


Encrypted Transmission

DJI Transmission supports secure pairing and AES 256-bit encryption to protect against unauthorized access to your information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure the highest level of security for your footage.

Boxue Wang, Director of Photography

"DJI Transmission not only optimizes the filmmaking process, but also frees us from the hassles of cables and limitations in distance. It’s really thoughtful of DJI to focus on making assistance tools for filmmaking. Details are what truly promote the industrialization of cinematography."

Known for: Nice View, Dying to Survive, The YinYang Master

Enhance Your Vision

Monitoring Experience

Integrated Design

Integrated Design

Compared with conventional solutions, DJI Transmission integrates a high-bright monitor with a built-in receiver, providing optimum portability and efficient setup to help you get started fast in any setting.

The remote monitor comes with a built-in image processing chip that is the same as the one used on Ronin 4D. This allows it to offer many features in addition to monitoring for integrated and efficient receiving, monitoring, control, and recording.
Compared with conventional solutions, DJI Transmission integrates a high-bright monitor with a built-in receiver, providing optimum portability and efficient setup to help you get started fast in any setting.

The remote monitor comes with a built-in image processing chip that is the same as the one used on Ronin 4D. This allows it to offer many features in addition to monitoring for integrated and efficient receiving, monitoring, control, and recording.

Wide-Gamut Touchscreen

Wide-Gamut Touchscreen

The High-Bright Remote Monitor is equipped with a 7-inch wide-gamut touchscreen with a brightness of up to 1,500 nits. It comes standard with a tempered glass screen protector and professional monitor hood to deliver rich, true-to-life colors, even in strong lighting conditions. With a 1920×1200 resolution, the screen displays a non-intrusive interface (OSD), with visible details like shooting parameters to ensure easily accessible information and seamless monitoring.
The High-Bright Remote Monitor is equipped with a 7-inch wide-gamut touchscreen with a brightness of up to 1,500 nits. It comes standard with a tempered glass screen protector and professional monitor hood to deliver rich, true-to-life colors, even in strong lighting conditions. With a 1920×1200 resolution, the screen displays a non-intrusive interface (OSD), with visible details like shooting parameters to ensure easily accessible information and seamless monitoring.

Supportive Tools

Supportive Tools

The remote monitor comes with supportive tools like safe zone, frame guide, zebra stripes, false color, peaking, and waveform for precise composition, exposure, and focusing.
The remote monitor comes with supportive tools like safe zone, frame guide, zebra stripes, false color, peaking, and waveform for precise composition, exposure, and focusing.

Independent Recording and Playback

The remote monitor features a microSD card slot and allows for independent recording and storage of up to 1080p/60fps H.264 live feed. The remote monitor can automatically start and stop recording in synchronization with the camera, as well as simultaneously access video timecodes, [3] making it easy to edit proxies right on set. When several remote monitors are used in conjunction, each monitor can even record or playback footage independently without interfering with other monitors.


Works with the DJI Ecosystem

Expansive Control Options

Built-In Motion Controller

The High-Bright Remote Monitor has a built-in gyroscopic sensor that enables it to act as a standalone motion controller for Ronin 2 or RS 3 Pro without the need for additional accessories. This allows users to achieve more complex camera movements from a moving vehicle or with a jib.

Compatible with Ronin 4D Hand Grips

The High-Bright Remote Monitor comes with an expansion-protective frame. When using with Ronin 4D Hand Grips, [2] the joystick can control the Ronin 2 or RS 3 Pro gimbal, and the focus wheel can control focusing and the adjustment of camera parameters like aperture, shutter, and ISO, while the record button controls start/stop of recording, [4] making the RS 3 Pro user experience similar to that of Ronin 4D.

Compatible with DJI Master Wheels and DJI Force Pro

When used with the DJI Master Wheels or DJI Force Pro, [5] the remote monitor allows users to achieve more advanced gimbal control when using Ronin 2 or RS 3 Pro. In this scenario, the original equipment will transmit control signals directly through DJI Transmission, no longer utilizing the wireless signals from DJI Master Wheels or DJI Force Pro. This boosts the transmission performance by three times and enhances signal range, stability, and anti-interference capabilities.

Mirror Control Mode

When RS 3 Pro is mounted to jibs, cable cams, and vehicles, with Mirror Control mode, [6] you can remotely control the menu of Sony mirrorless cameras from anywhere on set.

Rui Zhong, Director of Photography

“DJI Transmission redefines video transmission. It represents a whole new concept of workflow that seamlessly integrates control and monitoring, greatly improving efficiency. When Ronin stabilizers work with the latest DJI Transmission, I see refreshed vitality in this classic series. DJI Transmission not only makes Master Wheels more intuitive, longer control distance also means more possibilities for cinematic language. The innovation of DJI keeps empowering the film industry.”

Known for: My Dear Liar, A Little Red Flower

All In One

Ports and Power Supply

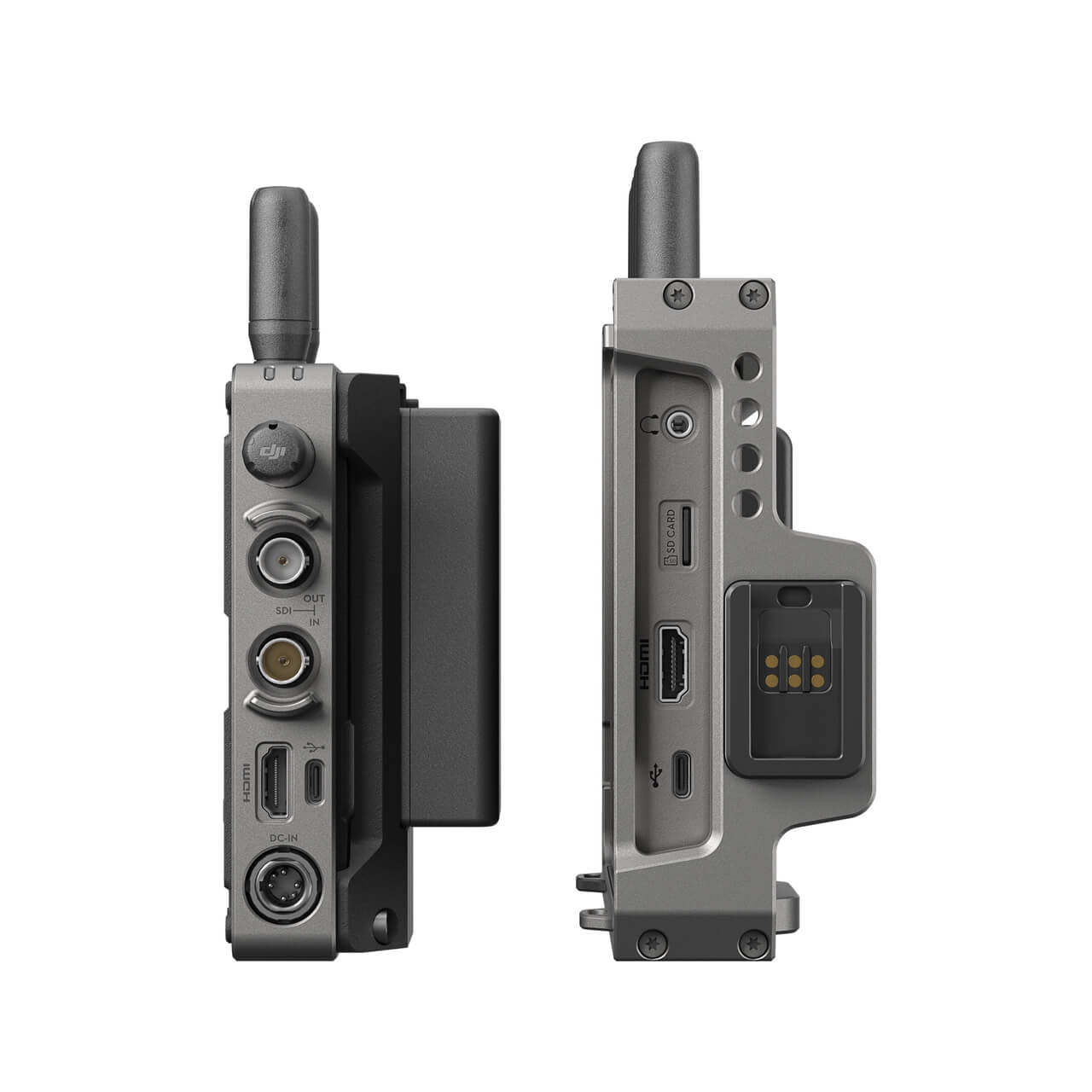

Video Transmitter Ports


3G-SDI Loop Out Port

3G-SDI Loop Out Port

Supports output of 1080p/60fps videos.
Supports output of 1080p/60fps videos.

3G-SDI Input Port

3G-SDI Input Port

Supports input of 1080p/60fps videos.
Supports input of 1080p/60fps videos.

HDMI 1.4 Type-A Input Port

HDMI 1.4 Type-A Input Port

Supports input of 1080p/60fps videos.
Supports input of 1080p/60fps videos.
High-Bright Remote Monitor Ports

3.5mm Stereo Jack

3.5mm Stereo Jack

Monitors audio in real time.
Monitors audio in real time.

microSD Card Slot

microSD Card Slot

For internal recording and playback on the monitor.
For internal recording and playback on the monitor.

HDMI 2.0 Type-A Input Port

HDMI 2.0 Type-A Input Port

Supports input of 4K/60fps videos.
Supports input of 4K/60fps videos.

USB Type-C port

USB Type-C port

For webcam and firmware update
For webcam and firmware update

Power Input Port [7]

Power Input Port [7]

6.8 V to 17.6 V power input (including CAN input and output, and connection with DJI Master Wheels and DJI Force Pro). [5]
6.8 V to 17.6 V power input (including CAN input and output, and connection with DJI Master Wheels and DJI Force Pro). [5]

HDMI 1.4 Type-A Output Port [7]

HDMI 1.4 Type-A Output Port [7]

Supports output of 1080p/60fps videos.
Supports output of 1080p/60fps videos.

3G-SDI Output Port [7]

3G-SDI Output Port [7]

Supports output of 1080p/60fps videos.
Supports output of 1080p/60fps videos.
Direct Power Supply by Gimbal

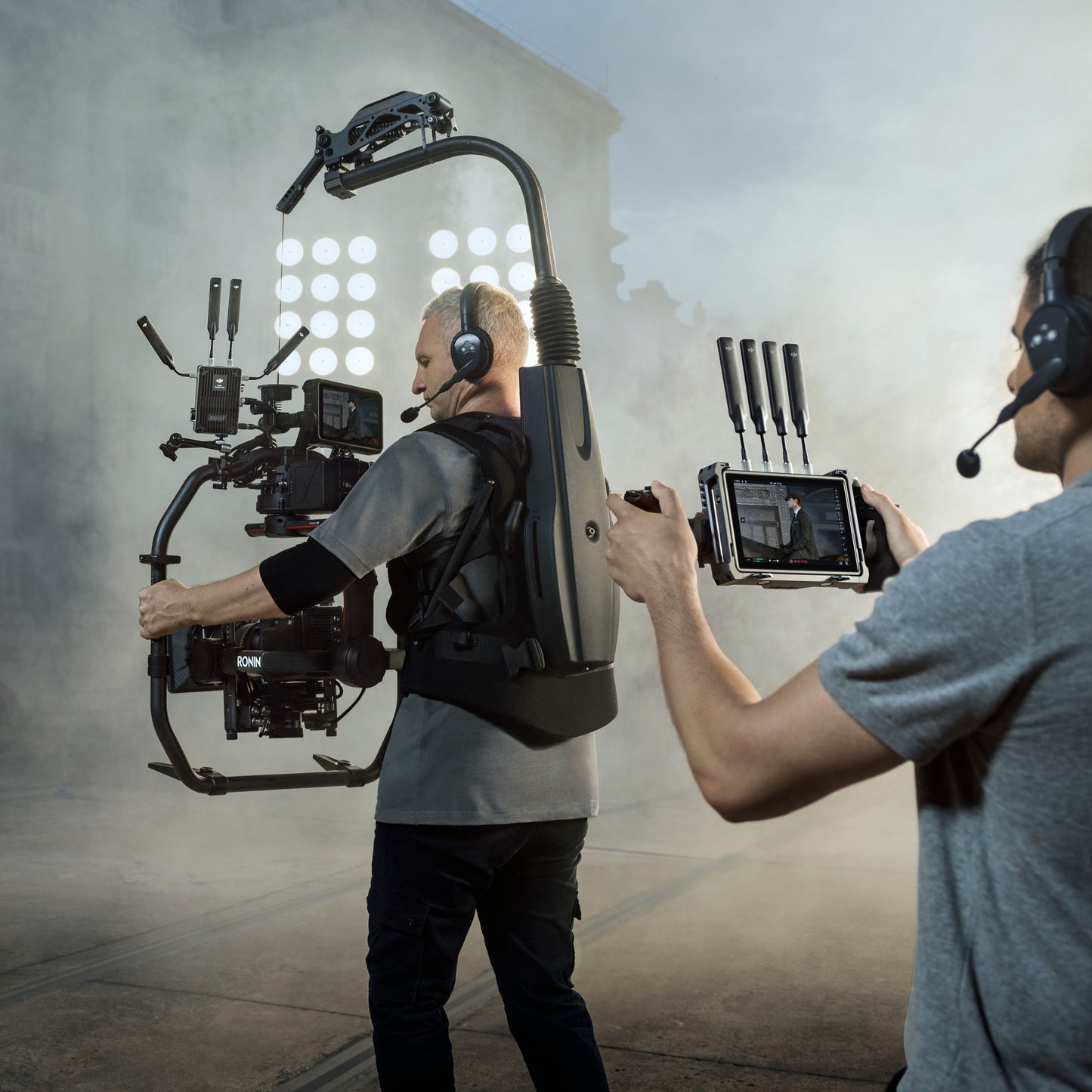

DJI Transmission can pair with Ronin 2 or RS 3 Pro for a customized shooting solution. The Video Transmitter can be mounted directly to the cold shoe on the bottom of the gimbal and powered by it directly without additional batteries.

Mounted on Ronin 2

Mounted on Ronin 2



Mounted on RS 3 Pro

Mounted on RS 3 Pro

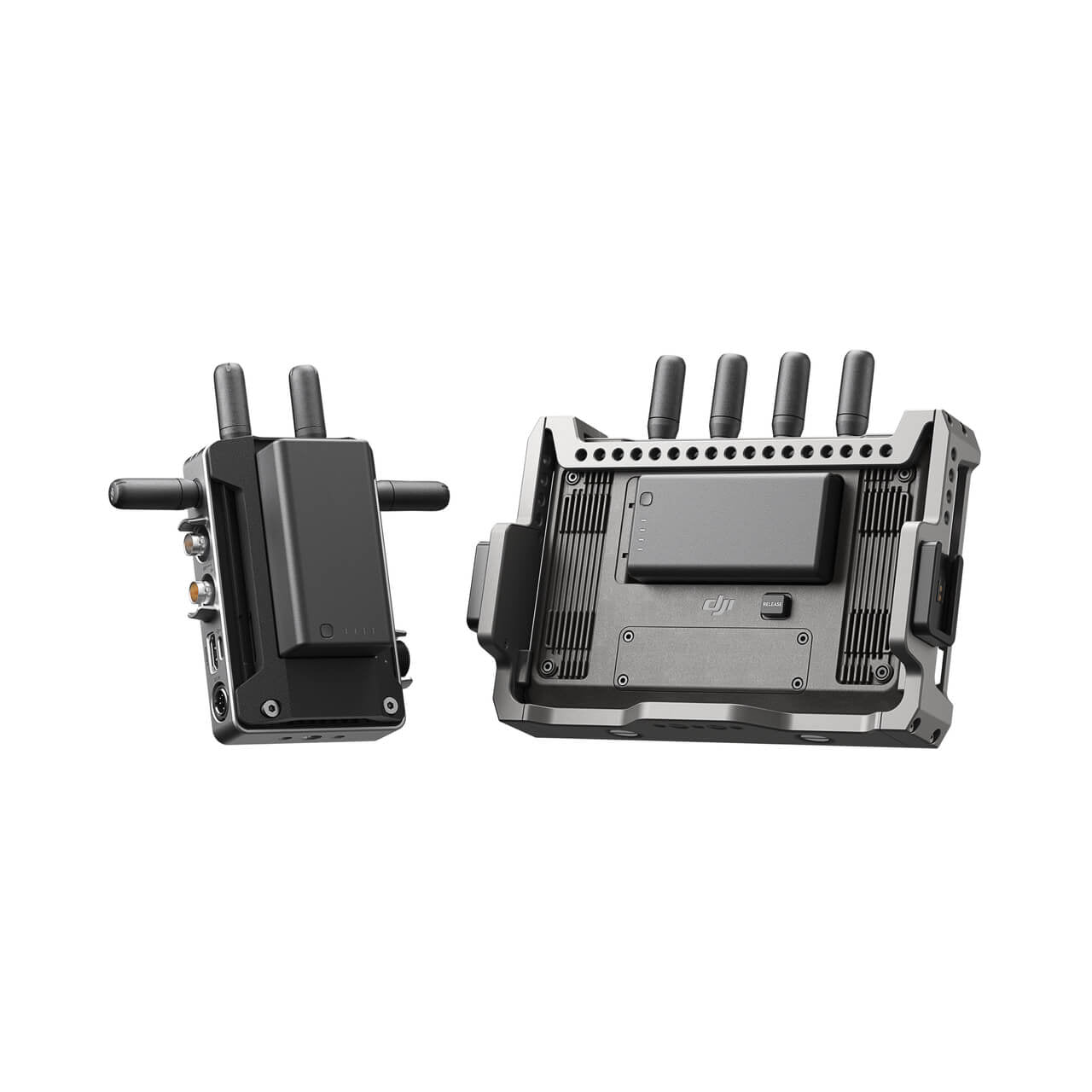

Other Power Supply Solutions

WB37 Power Supply

WB37 Power Supply

The Video Transmitter and High-Bright Remote Monitor are all compatible with the DJI WB37 Battery.
The Video Transmitter and High-Bright Remote Monitor are all compatible with the DJI WB37 Battery.

NP-F Power Supply

NP-F Power Supply

They can also use the included NP-F Battery Adapter for universal batteries.
They can also use the included NP-F Battery Adapter for universal batteries.

V-mount Power Supply

V-mount Power Supply

The video transmitter and remote monitor can be powered by V-mount batteries using third-party V-mount battery adapters. Pogo pins on both the front and back of the video transmitter also allow a simultaneous connection to a V-mount battery plate on a camera via a third-party battery adapter for integrated power supply.
The video transmitter and remote monitor can be powered by V-mount batteries using third-party V-mount battery adapters. Pogo pins on both the front and back of the video transmitter also allow a simultaneous connection to a V-mount battery plate on a camera via a third-party battery adapter for integrated power supply.

DC-IN Power Supply

DC-IN Power Supply

For a continuous power supply, a P-TAP to DC-IN power cable can be used to connect to an external power source.
For a continuous power supply, a P-TAP to DC-IN power cable can be used to connect to an external power source.

Vision Beyond Boundaries

DJI Transmission
  • 20,000ft 1080p/60fps Transmission
  • Seamless Auto Frequency Hopping
  • End-to-End Ultra-Low Latency
  • Integrated Wireless Receiver
  • Gimbal/Focus/Camera Control
  • Independent Recording and Playback


Specs

Specifications

  • Weight

  • Video Transmitter Weight: Approx. 350 g / 0.77 lbs (excluding antennas)
    High-Bright Remote Monitor Weight: Approx. 727 g / 1.6 lbs (excluding antennas)

  • Dimensions

  • Video Transmitter: 127×87×26 mm (L×W×H, excluding antennas)
    High-Bright Remote Monitor: 213×135×51 mm (L×W×H, excluding antennas)

  • Operating Frequency

  • Non DFS Frequency Band:
    2.4000-2.4835 GHz
    5.150-5.250 GHz
    5.725-5.850 GHz

    DFS Frequency Band:
    5.250-5.350 GHz
    5.470-5.600 GHz
    5.650-5.725 GHz"

  • Transmitter Power (EIRP)

  • 2.4000-2.4835 GHz:
    <33 dBm (FCC)
    <20 dBm (SRRC/CE/MIC)

    5.150-5.250 GHz:
    <23 dBm (FCC/SRRC/MIC)

    5.250-5.350 GHz:
    <30 dBm (FCC)
    <23 dBm (SRRC/MIC)

    5.470-5.600 GHz, 5.650-5.725 GHz:
    <30 dBm (FCC)
    <23 dBm (CE/MIC)

    5.725-5.850 GHz:
    <33 dBm (FCC/SRRC)
    <14 dBm (CE)

  • Max Bandwidth

  • 40 MHz

  • Max Bitrate

  • 40 Mbps

  • Power Consumption

  • 11 W

  • Power Supply Voltage

  • 6 to 18 V

  • Output Voltage

  • Power Output Port: 6 to 18 V

  • Operating Time

  • Video Transmitter: 3 hours 40 minutes [1]
    High-Bright Remote Monitor: 2 hours [1]

  • Input Video Format

  • 3G SDI: YCbCr 4:2:2 10-bit
    HDMI RGB 4:4:4
    1080p: 23.98/24/25/29.97/30/50/59.94/60fps
    1080i: 50/59.94/60fps
    720p: 50/59.94/60fps

  • Output Video Format

  • 3G SDI: YCbCr 4:2:2 10-bit
    1080p: 23.98/24/25/29.97/30/50/59.94/60fps
    1080i: 50/59.94/60fps
    720p: 50/59.94/60fps

  • Input Audio Format

  • SDI embedded, HDMI embedded

  • Output Audio Format

  • PCM

  • Video Transmission System

  • O3 Pro

  • Video Transmission Latency

  • 68 ms [2]
    100 ms [3]

  • Video Coding Format

  • H.264

  • Max Transmission Distance

  • 6 km (FCC) [4]
    4 km (CE/SRRC/MIC) [4]

  • Operating Temperature

  • -10° to 45° C (14° to 113° F)

  • Mirror Control Mode Supported Camera Models

  • ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control).

Other

  • Notes

  • 1. Measured at room temperature (25° C/77° F) with a fully charged WB37 battery.
    2. Measured when shooting 1080p/60fps video.
    3. Measured when shooting 1080p/24fps video.
    4. In open environments free of obstructions or interference.
