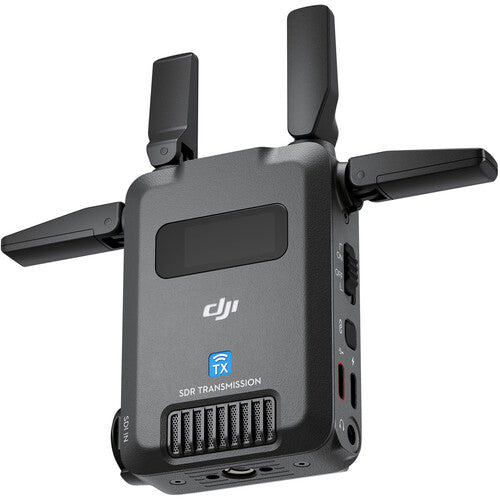

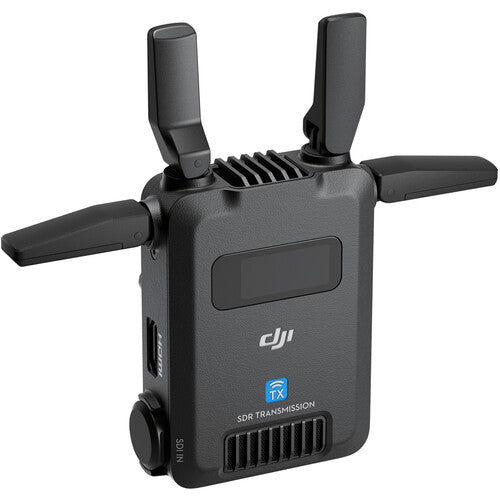

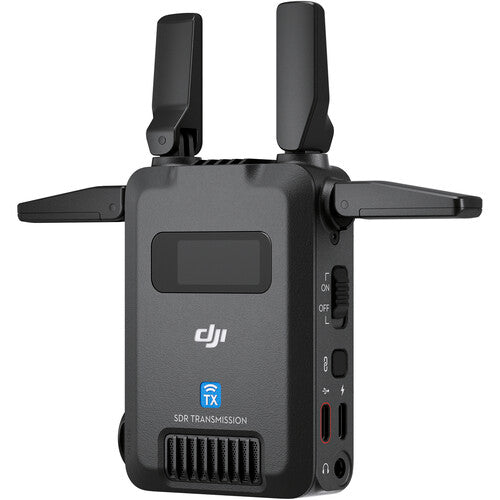

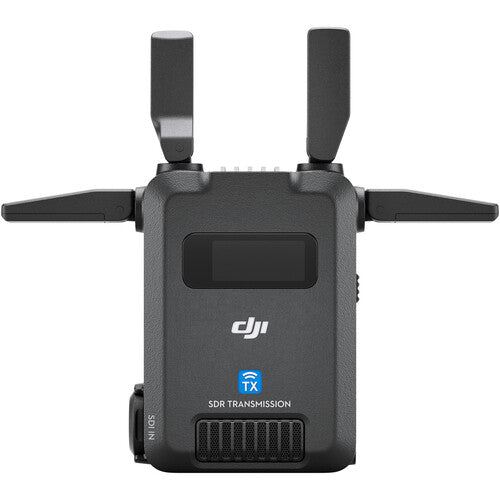

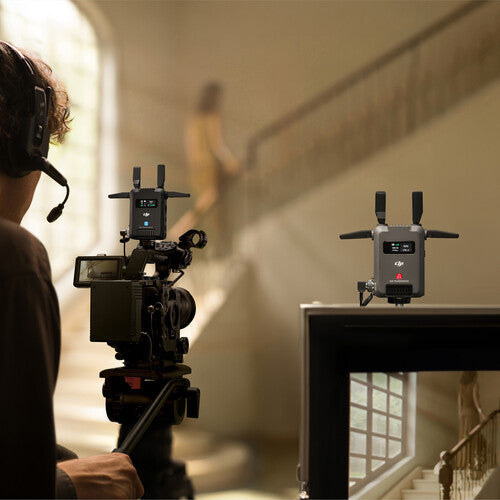

For stable, high-quality video transmission on a small-to-medium-sized shooting set, the SDR Transmission Transmitter from DJI is designed for long-range transmission of footage up to 1080p60 resolution using DJI's proprietary technology. SDR (Software Defined Radio) transmission uses a tri-bandwidth (DFS, 2.4 GHz, and 5.8 GHz) automatic frequency-hopping system, resulting in high penetration and distances up to 1.9 miles. The system is ideal for transmitting footage from a camera rig to an unlimited number of receivers or mobile devices, especially on crowded sets or around dense architecture that would otherwise overwhelm a conventional consumer Wi-Fi-based solution.

Robust Transmission up to 10,000'

The DJI SDR Transmission transmitter can reach up to 10,000' using its proprietary SDR technology, which accommodates wide, dynamic filming areas. It has a minimal latency of just 35 ms, ensuring smooth monitoring and extended reach.

High-Quality Image Transmission

The system supports video transmission with up to 1080p60 resolution with a high bit rate of up to 20 Mb/s, ensuring smooth monitoring and collaboration with high image detail, crisp audio, and vivid color.

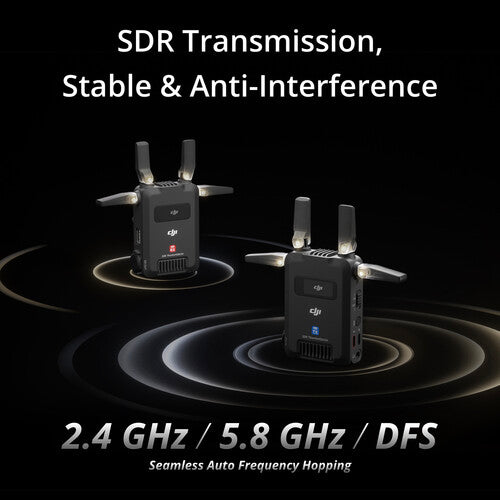

Seamless Auto-Frequency Hopping

SDR technology supports seamless auto-frequency hopping across the 2.4 GHz, 5.8 GHz, and DFS frequency bands. In case of interference, it can automatically switch to the cleanest channel when operating in complex environments with many obstacles.



When the SDR Transmission system is connected to the app in SDR Control mode or Wi-Fi mode, users can also manually switch channels within the app and monitor channel quality simultaneously.

Unlimited Number of Receivers

In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience for multiple collaborators and meeting the independent monitoring needs of various professional roles.

Metadata Transmission

SDR Transmission supports metadata transmission from mainstream cinema cameras like ARRI and RED via the SDI input. This provides directors, cinematographers, and DIT teams with quick access to detailed camera information in real time.

Camera/Gimbal Control

The SDR Transmission system supports PTP control over cameras, displaying and adjusting aperture, shutter, ISO, and even triggering the camera's photo-taking and video-recording functions through the app. It also supports CEC control for Sony cameras using Mirror Control mode. See the DJI SDR Transmission Camera Compatibility list for compatible cameras.



When connected to a gimbal, it also supports Force Mobile, virtual joystick, and gimbal recentering functions when connected to the gimbal via the app.

Versatile USB-C Port

The transmitter supports multiple monitoring methods and can output three SDR and two Wi-Fi signals simultaneously. The receiver can output to monitors via SDI/HDMI, and the transmitter also allows for direct connection to smartphones or tablets over Wi-Fi for added compatibility. The receiver can also utilize a USB-C output with a USB-C cable to directly connect the receiver to a smartphone or tablet for smooth and stable monitoring.

Camera Source Switching

When the transmitter is connected to the DJI Ronin app in Broadcast mode, users can seamlessly switch between camera sources within the app to quickly monitor different cameras.

App Monitoring Tools

The app supports local recording and playback, and recorded content can be reviewed on the playback page. It also supports mainstream monitoring assistance tools such as LUTs, peaking, waveform, and false color, delivering a professional monitoring experience.

Power Options

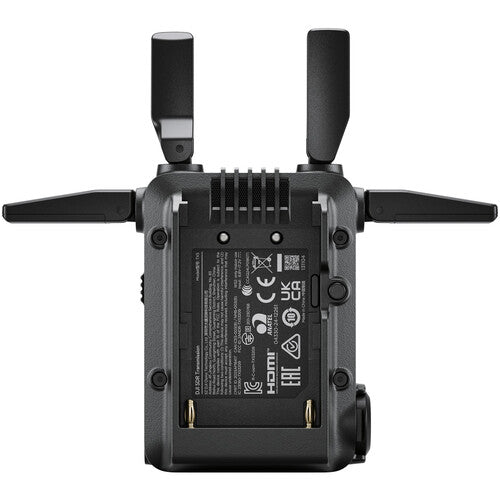

The transmitter can be powered directly via a USB-C cable using a USB PD fast charger, a standard USB power supply, or via an L-series battery using its built-in port on the back.

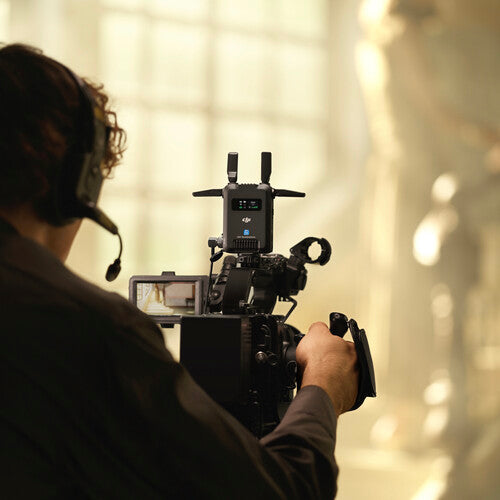

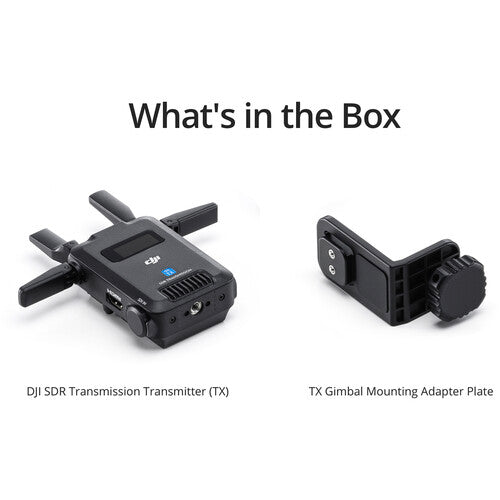

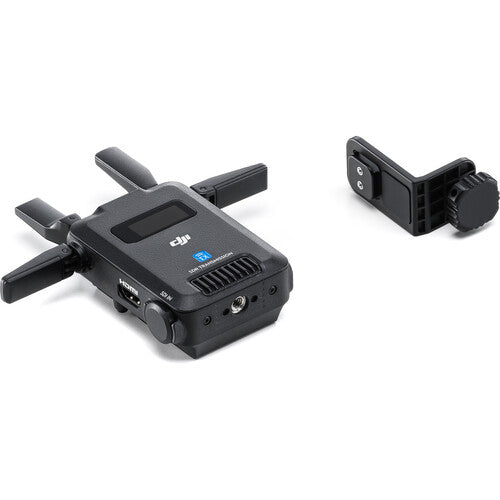

The transmitter also includes a gimbal adapter mount, and when used with the DJI RS 4 Pro, RS 4, or RS 3 Pro, the transmitter can be mounted on the gimbal and powered directly by it, eliminating the need for a separate battery.

DJI SDR Wireless Video Transmitter Specs

Key Specs

Video I/O	1x HDMI (Unspecified Signal) Input 1x BNC (Unspecified SDI) Input
Embedded Audio	HDMI/SDI/USB/Wireless
Latency	35 ms
Video Format	HDMI/SDI/USB 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 Show Less
Battery Type	1x L-Series
Power Consumption	8.2 W
Mounting	1x 1/4"-20 Female (Bottom)

Inputs / Outputs

Antenna I/O	No
Video I/O	1x HDMI (Unspecified Signal) Input 1x BNC (Unspecified SDI) Input
Embedded Audio	HDMI/SDI/USB/Wireless
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Power I/O	1x USB-C (2 A / 9 VDC) Input
Other I/O	1x USB-C (Firmware) Input

Wireless

Wireless Range	1.9 Miles / 3 km (Line-of-Sight) 656.2' / 200 m (Without Quality Loss)
Channel Bandwidth	20 MHz
Frequency Range	Non-DFS Frequencies 2.4 to 2.4835 GHz 5.725 to 5.85 GHz DFS Frequencies 5.47 to 5.725 GHz
Latency	35 ms
RF Power	30 dBm
Wi-Fi	Wi-Fi 6 (802.11ax); Tri-Band (2.4 & 5 + 5 GHz) with MU-MIMO Support (2 x 2)
Bluetooth	No
Mobile App Compatible	Yes: Android & iOS
Cellular Support	No

Format Support

Video Format	HDMI/SDI/USB 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Audio Format	PCM Audio
Wireless Video Compression	Compressed
Timecode Support	No

Power

Input Power	6.8 to 17.2 VDC 9 VDC at 2 A
Battery Type	1x L-Series
Power Consumption	8.2 W

Mounting

Mounting

1x 1/4"-20 Female (Bottom)

Environmental

Certifications	No
Operating Temperature	32 to 104°F / 0 to 40°C

General

Material of Construction	Plastic
Dimensions	3.4 x 2.5 x 1.3" / 86.5 x 64 x 32 mm (Excluding Antenna)
Weight	5.1 oz / 145 g, Including Antenna

Packaging Info

Package Weight	0.475 lb
Box Dimensions (LxWxH)	4.95 x 4.2 x 1.55"
